IP65 Explosion Proof PSA Nitrogen Generator 5-5500Nm3/hr CE Certified
Detail produk:
| Place of Origin: | China |
| Nama merek: | KERONG GAS |
| Sertifikasi: | ISO9001, CE, ASME |
| Model Number: | KRN |
Syarat-syarat pembayaran & pengiriman:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Harga: | negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 8 weeks |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per year |
|
Informasi Detail |
|||
| Name: | Nitrogen Generation System Package | Purity: | 90%~99.9999% |
|---|---|---|---|
| Dew point: | -45℃ or more | Material: | Stainless steel or carbon steel |
| Capacity: | 5Nm3/hr~5500Nm3/hr | Pressure: | Adjustable |
| Menyoroti: | IP65 explosion proof nitrogen generator,PSA nitrogen gas system with CE,industrial nitrogen generation package |
||
Deskripsi Produk
| Attribute | Value |
|---|---|
| Name | Nitrogen Generation System Package |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

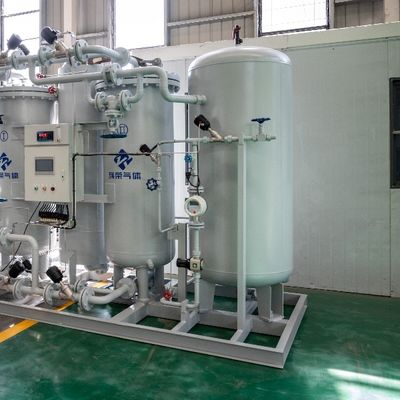

Our IP65 Explosive Proof Nitrogen Generation System Package is designed for safe and reliable operation in hazardous environments, delivering nitrogen purity up to 99.99%. With an IP65-rated enclosure, it is fully protected against dust ingress and low-pressure water jets, ensuring durability in harsh conditions.
Certified with CE compliance, it meets strict European safety and quality standards. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, the system produces continuous, on-site nitrogen with stable purity and pressure. Ideal for chemical plants, oil & gas facilities, and industrial laser cutting, it offers explosion-proof protection, automatic controls, and low-maintenance performance.
Capacity: 5-5500Nm³/h
Dew point: -45 ℃ or more
Purity: 90%~99.9999%
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| 5 | 99.9 | 0.32 | ||
| 4 | 99.95 | 0.3 | ||
| 3 | 99.99 | 0.25 | ||
| 2 | 99.999 | 0.22 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
