ISO13485 Medical Devices Certified Medical Oxygen Generation Plant
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | KERONG GAS |
| Sertifikasi: | ISO13485，ISO9001 |
| Nomor model: | KRO |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | KOTAK KAYU |
| Waktu pengiriman: | 8 minggu |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 1000 pcs per tahun |
|
Informasi Detail |
|||
| Nama: | Pabrik produksi oksigen medis | Kemurnian: | 90%~99,5% |
|---|---|---|---|
| Kandungan minyak: | Bebas minyak | Bahan: | Baja Tahan Karat Atau Baja Karbon |
| Kapasitas: | 5Nm3/jam~60Nm3/jam | Tekanan: | Dapat disesuaikan |
| Menyoroti: | ISO13485 certified oxygen generator,medical oxygen generation plant,PSA medical oxygen generator |
||
Deskripsi Produk

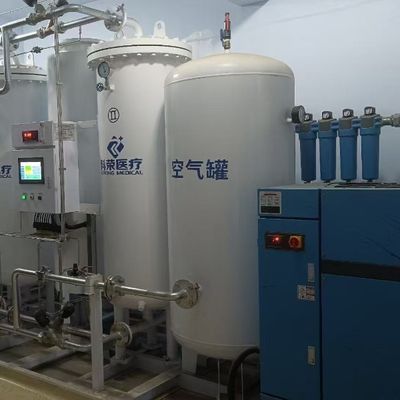

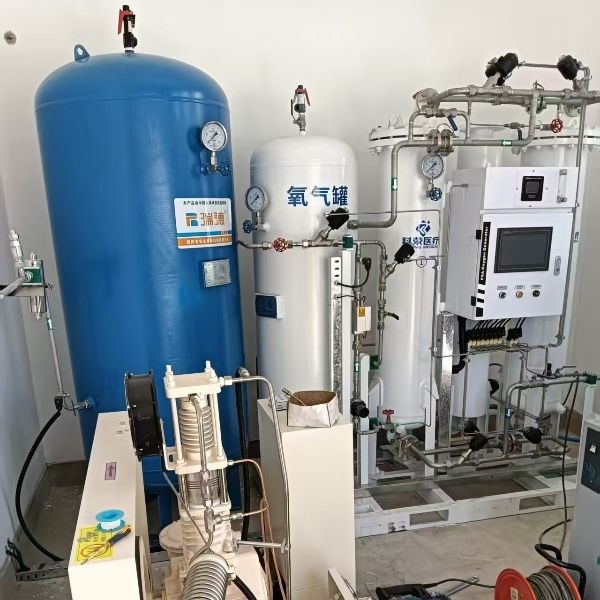

ISO13485 Medical Devices Certified Medical Oxygen Generation Plant
Product description
Our ISO13485 Medical Devices Certified Medical Oxygen Generation Plant is engineered for hospitals and healthcare facilities requiring reliable, high-purity oxygen. Utilizing advanced Pressure Swing Adsorption (PSA) technology, it produces medical-grade oxygen with purity of 93% ±3%, ensuring safe and continuous patient care. Certified under ISO13485 medical device standards, the system meets strict regulatory requirements for quality, safety, and performance. Fully automatic with intelligent PLC controls, real-time oxygen monitoring, and energy-efficient operation, it delivers stable flow and pressure with minimal maintenance. Compact, skid-mounted, and easy to install, this oxygen generation plant provides a cost-effective, on-site alternative to cylinders or liquid oxygen.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
